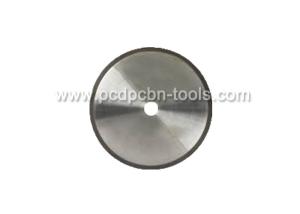

High Precision 1A1R Ultrathin Diamond Cutting Wheel For Glass Tube
1.Application
Untrathin Diamond Cutting Wheel: For glass, ceramics and tungsten carbide materials.
2.Specifications
| NO. | Cutting Wheel Base | Cutting Wheel Materials | Advantages | Mainly Application | Images |
| 1 | Resin | CBN/Diamond | Excellent self-sharpening performance, bonding agent is elasticity, improved surface quality | Tungsten Carbide, Quartz Glass |  |
| 2 | Metal | CBN/Diamond | Strong ability to hold abrasives, good abrasive resistance and good shape retention , long service life, | Zirconia Ceramics, Fuse glass tube and Sapphire |  |
3.Ultrathin Diamond/CBN Cutting Wheel Structure
| No. | Item Type | Characteristics | Advantages | Application | Drawing |
| 1 | 1A1 | T=X | It has High Precision | Usually used for High precision cutting/cut-off grooves | |
| 2 | 1A1R | T>X | It is convinent for removing chips and cooling | Mainly used for cutting/Cut-off the component with large cutting depth | |
| Thickness T/Diameter D | 50~100 | 101.6~127 | 130~160 | 175~203 | 250~400 | Thickness limit deviatione |
| 0.2 | √ | | | | | 1A1 Type:±0.005
1A1R Type:±0.010 |
| 0.3 | √ | √ | √ | | |
| 0.4 | √ | √ | √ | | |
| 0.5 | √ | √ | √ | | |
| 0.6 | √ | √ | √ | √ | |
| 0.7 | √ | √ | √ | √ | |
| 0.8 | √ | √ | √ | √ | |
| 0.9 | √ | √ | √ | √ | |
| 1.0 | √ | √ | √ | √ | √ |
| 1.5 | √ | √ | √ | √ | √ |
| 2.0 | √ | √ | √ | √ | √ |
4.Application Industry:
1) Tungsten Carbide Rods, Plates and Strip;
2) Ceramic Materials: Alumina, Zirconia, Black Ceramics, Silicon Oxide and Porcelain Tubes
3) Glass Industry: Sapphire, Quartz Crucible and other glass
4) Electronic Industry: PCB, Optics Industry
5) Other Industry: Cutting Tools, Molds and Jewelry Industry
5.Halnn Ultrathin Diamond Cutting Wheel Advantages
(1) Sharp cutting, high processing efficiency;
(2) High rigidity, high strength, long service life;
(3) High precision, can be used for precision slotting machine cut-off.
(4) Continuous cutting does not lead to slipping, and no saw blade passivation;
(5) Narrow slits can greatly increase the utilization of valuable raw materials.
