Halnn Tools Solid CBN Tips Cutting Gray iron Brake Disc
1. Halnn Tools Solid CBN indexable Insert Finishing Cast iron Brake Rotor From Halnn Tools
With the development of the automobile industry, the brake disc industry also
develop rapidly because it is one of the most important parts in brake system. And brake disc often produce with large quantity. They use CNC Lathe, especially for big manufacturers. They need high efficiency in the process. But with traditional carbide insert, it has low cutting speed, can’t satisfy the manufacturer. CBN Inserts can be used for machining cast iron parts with high speed, so it became the best choice for these brake disc manufacturers.
2. Why we Choose Halnn Tools Solid CBN indexable Insert Finishing Cast iron Brake Rotor From Halnn Tools
Brake disc has low hardness, traditional cutting tools can machine brake disc, but why do the manufacturers also choose CBN inserts which costs higher than traditional cutting tools?
CBN insert has high harndess and excellent wear resistance, and can realize high speed cutting with 500~2000m/min, so CBN insert is the right tool for machining brake dice with CNC lathe, it also can satisfy the high surface quality and the parallelism.
3.Solid CBN Tips Characteristics
| Insert Grade | Binder | CBN Content(%) | Granularity | Hardness(HV) | Cutting Depth | Condition |
| BN-S300 | AL,TIC | 97 | 4—6 | 3400—3600 | ≤2mm | Continuous |
| BN-K10 | Si,Co | 95 | ≤ 2 | 3300—3500 | ≤1.5mm | Continuous |
| BN-K20 | AL | 95 | 2—4 | 3400—3600 | ≤0.5mm | Continuous |
| BNK30 | Si,TIC | 97 | 2—4 | 3400—3600 | ≤0.5mm | Continuous |

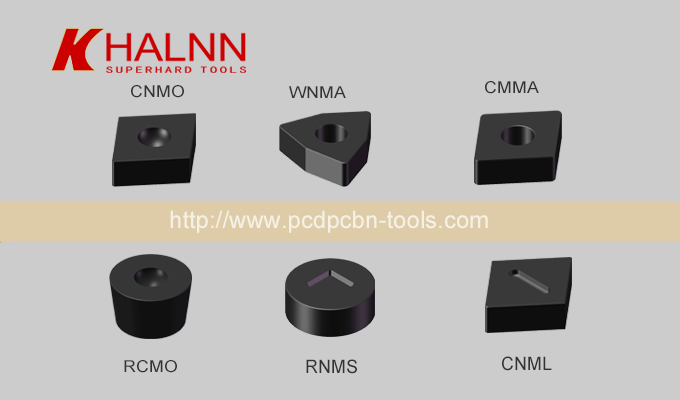

4.Pictures of Halnn Tools Solid CBN Tips
5.Detailed Data of Solid CBN Tips
 |
| Type | Dimension | Standard Chamfer | Grades |
| L(mm) | φI.C(mm) | φd(mm) | S(mm) | r(mm) | BNK30 | BN-S300 | BN-S20 | BN-S200 |
| CNGA120404 | 12.9 | 12.7 | 5.16 | 4.76 | 0.4 | S01020 S01025 S02020 S02030 S02530 S03020 | ● | ● | ● | ● |
| CNGA120408 | 12.9 | 12.7 | 5.16 | 4.76 | 0.8 | ● | ● | ● | ● |
| CNGA120412 | 12.9 | 12.7 | 5.16 | 4.76 | 1.2 | ● | ● | ● | ● |
| CNGA120416 | 12.9 | 12.7 | 5.16 | 4.76 | 1.6 | ● | ● | ● | ● |
6.Our service
Pre-Sales Service
l) Prompt reply and 24 hours online,professional team to provide best price and quality product.
l) Same testing support
l ) Every batch of products will be tested to ensure its quality.
After-sales Service
l) The real-time logistics information monitoring
l ) Any questions about the product can be consulted at any time.
l) Product with any problem can return.
7.Application Case
| Rough turning Brake Disc |
| Component : Brake Disc |  |
| Materials: HT250 |
| Hardness: HB170~210 |
| Selected Insert: BN-S300 CNMN120716 |
| Cutting Parameters: Vc=380m/min |
| ap=2.5mm,f =0.65mm/r |
| CBN Grade | Cutting Speed | Tool Life | Efficiency |
| Halnn BN-S300 | 380 m/min | 95 pieces | Improved 1.5 times |
| Coating Carbide insert | 150m/min | 15 pieces |
