BH - H05 CNMA120704 CBN Tips High Efficiency Hard Turning Large Rotary Support Bearing

Name: BH H05 CNMA120704 CBN Tips High Efficiency Hard Turning Large Rotary Support Bearing
Brand: Halnn
Price: 1 USD

Wholesale BH - H05 CNMA120704 CBN Tips High Efficiency Hard Turning Large Rotary Support Bearing from china suppliers

Brand Name : Halnn

Model Number : TNGA160402-6S

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable ( About 10-30 Usd/ Piece)

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Machining Process : High efficiency Hard Turning

Dimension : Customter-made

Application : Large Rotary Support Bearing

Origin Country : Henan,China

Mnchining Material : Hardened Steel

Brade : Halnn Tools

Insert Garde : TNGA160402-6S

Body : Cubic boron nitride

Contact Now

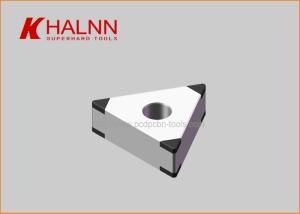

BH - H05 TNGA160402-6S CBN Tips High efficiency Hard Turning Large Rotary Support Bearing

1. Halnn Tools BH - H05 TNGA160402-6S CBN Tips High efficiency Hard Turning Large Rotary Support Bearing

As an important part supporting the mechanical rotating body and ensuring its rotation accuracy, the bearing is widely used in major machinery industries. With the continuous advancement of modern technology, the requirements for bearings are gradually improved, and in order to meet increasingly diverse bearing characteristics, The tool industry is also constantly developing high-precision, high-efficiency, high-quality tool materials. It is very important to select the tool material when machining the bearing. Choose a series of grades such as Halnn super-hard CBN tool BN -H05, which can efficiently process the bearing, effectively improve its processing efficiency and reduce production cost.

2.Detailed Data of CBN Tips


Type	Dimension					Standard Chamfer	Grades
Type	L(mm)	φI.C(mm)	S(mm)	φd(mm)	r(mm)	Standard Chamfer	BN-H05	BN-H10	BN-H21	BN-K10
TNGA160402-6S	16.5	9.525	4.76	3.81	0.2	S01015 S01020 S01025 S02020 S02025	◎	◎	◎	◎
TNGA160404-6S	16.5	9.525	4.76	3.81	0.4		◎	◎	◎	◎
TNGA160408-6S	16.5	9.525	4.76	3.81	0.8		◎	◎	◎	◎
TNGA160412-6S	16.5	9.525	4.76	3.81	1.2		◎	◎	◎	◎

3.Certificate of Halnn Tools CBN Tools

BH - H05 CNMA120704 CBN Tips High Efficiency Hard Turning Large Rotary Support Bearing

4.Application Case of CBN Tips Machining Bearing

BH - H05 TNGA160402-6S CBN Tips High efficiency Hard Turning Large Rotary Support Bearing

BH - H05 TNGA160402-6S CBN Tips Hard Turning bearings
Machining Part: Slewing bearing end face
Workpiece Hardness:HRC 47~55
Finishing allowance: ＜ 1 mm
Machining Materials:42CrMo4
Inserts Grade:BH - H05
Cutting Parameters:ap≤1mm,Fr=0.05-0.35mm/r,Vc= 60-250m/min
The tool life is 7 times that of ceramic tools, and the surface roughness is controlled between Ra 0.6-1.0.

5.Service

Pre-Sales Service	After-sales Service
l) Prompt reply and 24 hours online,professional team to provide best price and quality product. l) Same testing support l ) Every batch of products will be tested to ensure its quality.	l) The real-time logistics information monitoring l ) Any questions about the product can be consulted at any time. l) Product with any problem can return.
